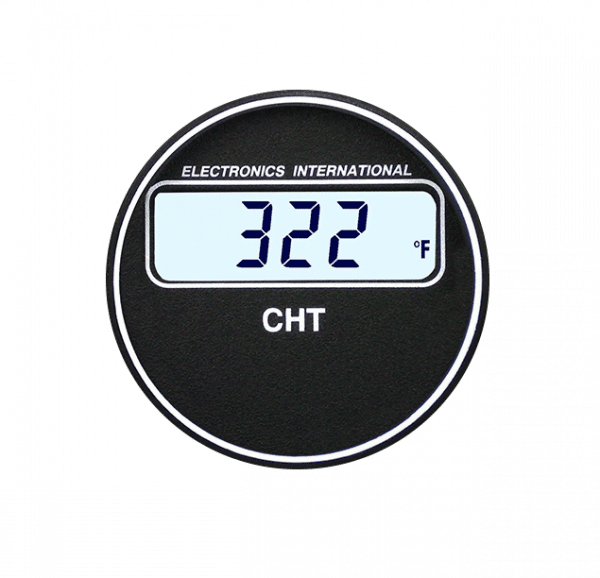

C-1 CHT Instrument

The C-1 Cylinder Head Temperature (CHT) Instrument by Electronics International is a high-precision device designed to monitor the temperature of an aircraft's engine cylinders. Accurate CHT readings are essential for maintaining optimal engine performance and ensuring flight safety.

Key Features:

• High-Resolution Display: The C-1 features a large digital backlit display with one-degree Fahrenheit resolution, ensuring precise and easy-to-read temperature readings.

• FAA TSO Certification: The instrument is FAA TSO'd and STC'd, meeting stringent standards for design and performance, providing assurance of its reliability and suitability for aviation use.

• Customizable Faceplate: The C-1's faceplate is custom-built to match your aircraft's specific CHT limits, featuring red and yellow markings for clear visual indicators. This customization enhances readability and ensures compliance with operational parameters.

• Additional Features: The C-1 includes a high-temperature warning light that illuminates when the CHT exceeds a predefined threshold, alerting pilots to potential engine overheating. It also features a tach time recorder that logs engine operation time above 1,300 RPM, providing valuable data for maintenance and operational planning.

Installation and Compatibility:

The C-1 is designed for straightforward installation, fitting into a standard 2 1/4-inch round hole (MS28042-1A mount) and measuring 2.5 inches in depth. It operates efficiently within a voltage range of 6 to 55 volts, making it compatible with a wide range of aircraft electrical systems. The instrument features a 210-degree analog arc and a digital display with four digits, providing clear and precise CHT readings.

Why Choose the C-1 CHT Instrument?

The C-1 offers a reliable and precise solution for monitoring CHT in aircraft engines. Its high-resolution display, FAA certification, customizable faceplate, and additional features make it an excellent choice for enhancing your aircraft's engine monitoring capabilities.

For more detailed information, including installation instructions and technical specifications, refer to the manufacturer's documentation.
