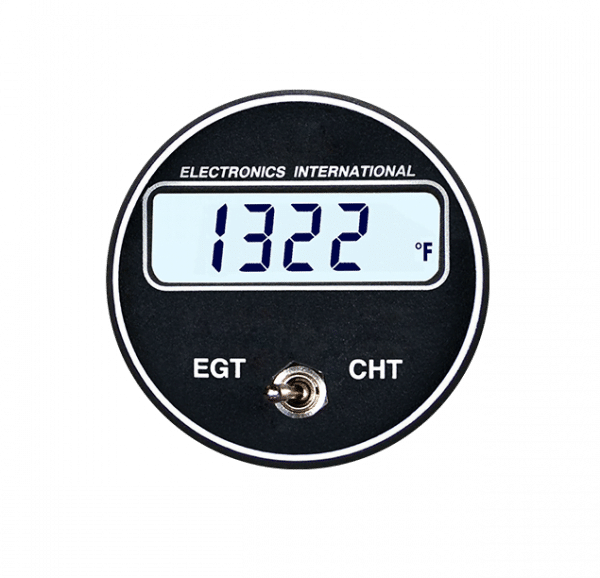

EC-1 EGT and CHT Instrument

The EC-1 EGT and CHT Instrument by Electronics International is a high-precision device designed to monitor both Exhaust Gas Temperature (EGT) and Cylinder Head Temperature (CHT) in single-engine aircraft. This instrument provides real-time data on critical engine parameters, enhancing situational awareness and flight safety.

Key Features:

• Dual-Channel Monitoring:
  The EC-1 features two independent channels, allowing for simultaneous monitoring of EGT and CHT. This comprehensive monitoring provides real-time data for both parameters, which is essential for pilots operating single-engine aircraft.

• High-Resolution Display:
  This instrument boasts a large digital backlit display with one-degree Fahrenheit resolution, ensuring precise and easy-to-read temperature readings. The display is designed for visibility in direct sunlight and is fully backlit for nighttime operations.

• FAA Certification:
  The EC-1 is FAA TSO'd and STC'd, meeting stringent standards for design and performance, ensuring its reliability and suitability for aviation use.

• Engine Leaning Feature:
  The EC-1 includes an engine leaning feature that allows pilots to lean the mixture to peak EGT or a specified temperature below peak. This capability helps optimize fuel efficiency and overall engine performance.

• Data Recording:
  The instrument records EGT and CHT data at a rate of up to three times per second, storing valuable flight information for up to 1,500 flights. This feature is invaluable for post-flight analysis and maintenance planning.

• Easy Installation:
  The EC-1 is designed for straightforward installation, fitting into a standard 2 1/4" round hole and measuring 2.5 inches in depth. It operates efficiently within a voltage range of 7.5 to 35 volts, making it compatible with a wide range of aircraft electrical systems.

Why Choose the EC-1 EGT and CHT Instrument?

The EC-1 offers a reliable and precise solution for monitoring EGT and CHT in single-engine aircraft. Its dual-channel monitoring, high-resolution display, FAA certification, engine leaning feature, and data recording capabilities make it an excellent choice for enhancing your aircraft's engine monitoring system.

For more detailed information, including installation instructions and technical specifications, refer to the manufacturer's documentation.
