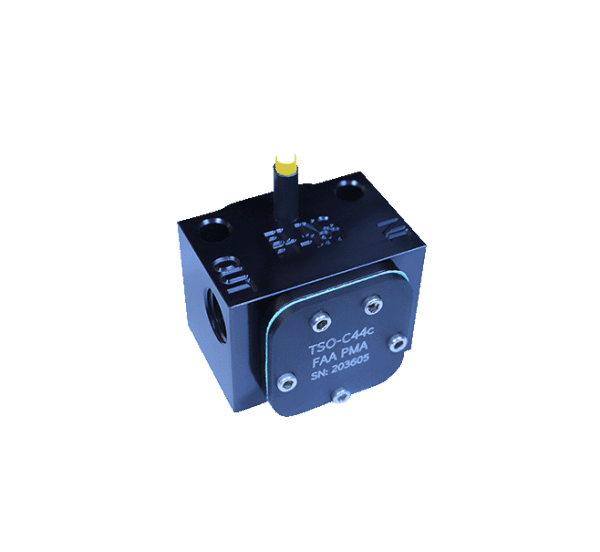

FT-180 Fuel Flow Transducer

The FT-180 Fuel Flow Transducer by Electronics International is a high-performance device designed to accurately measure fuel flow in aircraft engines exceeding 550 horsepower. This transducer is essential for pilots and maintenance personnel seeking precise fuel consumption data, which is crucial for flight planning, fuel management, and overall operational efficiency.

Key Features:

• High-Flow Capacity:
  The FT-180 is engineered to handle fuel flow rates from 5 to over 250 gallons per hour (GPH), accommodating the demands of high-horsepower engines. This wide range ensures accurate measurements across various aircraft types.

• Low Pressure Drop:
  Designed to minimize resistance, the FT-180 maintains a pressure drop of 0.23 PSI at 60 GPH and 0.92 PSI at 120 GPH. This low pressure drop is crucial for maintaining optimal engine performance and efficiency.

• Durable Construction:
  Constructed from black anodized aluminum, the FT-180 is both lightweight and resistant to corrosion, ensuring longevity and reliability in demanding aviation environments.

• Direct Interface Compatibility:
  The FT-180 interfaces directly with Electronics International's FP-5 and FP-5L fuel flow instruments, as well as most other fuel flow instruments, without the need for an additional interface unit. This simplifies installation and integration into existing systems.

• Compact Design:
  With dimensions of 1.375 inches in height, 1.620 inches in width, and 1.90 inches in length, the FT-180's compact design allows for flexible installation options within the aircraft's fuel system.

Installation Considerations:

• Orientation:
  For optimal performance, install the FT-180 with the wiring pointing upward. This orientation helps prevent air bubble entrapment, which can lead to inaccurate readings.

• Fitting Specifications:
  The FT-180 is equipped with #8 male flare fittings, compatible with standard aircraft fuel lines. Ensure that all connections are secure and leak-free to maintain system integrity.

• Torque Specifications:
  When installing fittings into the transducer, do not exceed a torque of 25 foot-pounds to prevent damage to the unit.

Applications:

The FT-180 is ideal for aircraft with engines rated over 550 horsepower, including high-performance piston engines and turboprop engines. Its accurate fuel flow measurements are vital for flight planning, fuel management, and monitoring engine performance.

Why Choose the FT-180 Fuel Flow Transducer?

The FT-180 offers a reliable and precise solution for measuring fuel flow in high-horsepower aircraft engines. Its high-flow capacity, low pressure drop, durable construction, and compatibility with various fuel flow instruments make it an excellent choice for enhancing your aircraft's fuel management system.

For more detailed information, including installation instructions and technical specifications, please refer to the manufacturer's documentation.
