M-1 Manifold Pressure Instrument

M-1 Manifold Pressure Instrument

The M-1 Manifold Pressure Instrument by Electronics International is a precision-engineered device designed to provide accurate manifold pressure readings in aircraft engines. This instrument is essential for pilots and maintenance personnel seeking precise data on engine performance, which is crucial for flight planning, fuel management, and overall operational efficiency.

Key Features:

• Dual Display System:

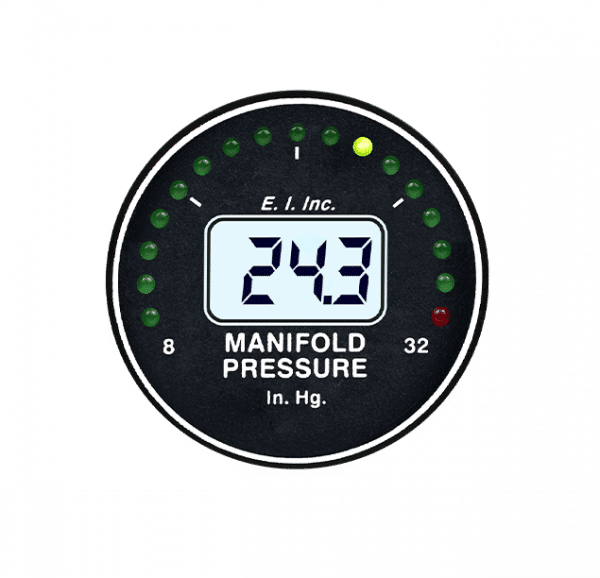

  The M-1 features a 210-degree graphic analog display complemented by a digital display. The analog display offers a quick visual reference of manifold pressure with respect to its operating range, utilizing a three-color LED arc to indicate normal, caution, and restricted ranges. The digital display provides precise manifold pressure readings to within 0.1 inches of mercury (inHg), ensuring accurate monitoring of engine performance.

• High-Resolution Measurement:
  The digital display measures absolute pressure in the engine's manifold to 0.1 inches of mercury, enabling pilots to make precise throttle adjustments for maximum performance during takeoff, climb, and cruise.

• FAA Certification:
  The M-1 is FAA TSO'd and STC'd, meeting stringent standards for design and performance. This certification provides assurance of its reliability and suitability for aviation use.

• Backlit for Night Operations:
  The instrument is fully backlit, ensuring visibility in low-light conditions and enhancing safety during nighttime operations.

• Easy Installation:
  Designed to fit into a standard 2 1/4" round hole, the M-1 is compatible with most aircraft panels. Its compact design and straightforward installation process make it a practical addition to any cockpit.

Applications:

The M-1 is ideal for aircraft with engines requiring precise manifold pressure monitoring. Its accurate readings are vital for flight planning, fuel management, and monitoring engine performance.

Why Choose the M-1 Manifold Pressure Instrument?

The M-1 offers a reliable and precise solution for manifold pressure measurement in aircraft engines. Its dual display system, high-resolution measurement, FAA certification, backlit design, and easy installation make it an excellent choice for enhancing your aircraft's engine monitoring system.
